MODEL |
PS-880 |
PS-1050 |
PS-1300 |
|
MAX. WIDTH |
880mm |
1050mm |
1300mm |
|
PLATE THICKNESS |
0.15 – 0.4mm |
||
|
DEVELOPING TIME |
20 – 40 sec (1 sec INCREMENT) |
||
|
DEV. TEMP. RANGE |
20 C – 40 C (1 C INCREMENT) |
||
|
DEV. TANK CAPACITY |
25 |
32 |
40 |
|
DRY. TEMP RANGE |
30 C – 80 C |
||
|
REPLENISH |
REPL. ONCE EVERY PLATE 1 sec INCREMENT (0-99 sec) |
||
|
POWER SOURCE |
220 V 1Φ 2.3 KW |
220 v 1Φ 3 KW |
|
|
WEIGHT |
120 Kg |
135 Kg |
165 Kg |

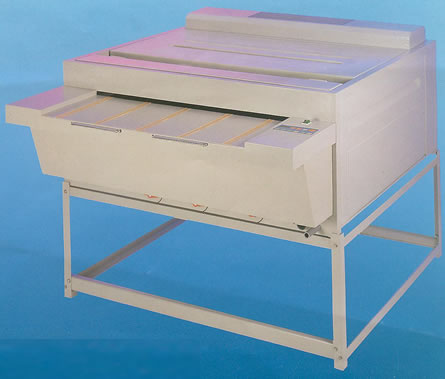

HERO PS-PLATE PROCESSOR
Features:
- FRP Covers
- Controlled by a micro computer for ease of operation
- Energy and water saving device at the entrance slot that controls the auto start & stop of the machine
- Automatic replenishment of developer
- Rewash entrance available for retouch finishing
- Plate counter
- Back key for backward feeding in case of wrong insertion.
